Summarization:

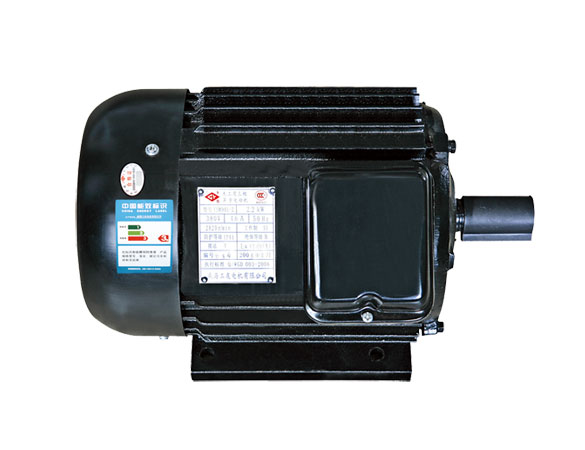

YSM series motor is full-close rat-cage three-phase asynchronous motor self-cooled by fan. The motor is manufactured for small multifunctional wood working machine. The series motor is of the characteristic of large starting torque, strong ability of over loading, low temperature raise, small vibrancy, low yawp, great reliability, easy maintenance.
YSM series motor is widely used to various wood working machine.

Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt：380V
Rated Frequency：50Hz
Working System：S1
Wiring： Y
Protection Grade：IP44
Insulation Grade：E或B（E OR B）
Cooling Type：IC 411

Technical data

Type	Rated power (KW)	Rated Volt (V)	Rated current (V)	Rated speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked current/Rated current	Locked-rotor torque/Rated torque	Maximal torque/Rated torque	Yawp dB(A)
Synchronous speed 3000r/min 2pole
YSM5612	0.09	380	0.32	2800	62	0.68	6.0	2.3	2.4	70
YSM5622	0.12		0.38	2800	67	0.71	6.0	2.3	2.4	70
YSM6312	0.18		0.52	2800	69.5	0.75	6.5	2.3	2.4	70
YSM6322	0.25		0.67	2800	72.5	0.78	6.5	2.3	2.4	70
YSM7112	0.37		0.96	2800	74	0.80	6.5	2.3	2.4	75
YSM7122	0.55		1.35	2800	76	0.82	6.5	2.3	2.4	75
YSM8012	0.75		1.74	2800	77	0.85	6.5	2.2	2.4	75
YSM8022	1.1		2.52	2800	78	0.85	7.0	2.2	2.4	78
YSM90S-2	1.5		3.35	2800	80	0.85	7.0	2.2	2.4	83
YSM90L-2	2.2		4.74	2800	81	0.86	7.0	2.2	2.3	83
YSM100L-2	3		6.31	2800	83	0.87	7.0	2.2	2.3	85
Synchronous speed 1500r/min 4pole
YSM5614	0.06	380	0.28	1400	56	0.58	6.0	2.4	2.4	65
YSM5624	0.09		0.39	1400	58	0.61	6.0	2.4	2.4	65
YSM6314	0.12		0.48	1400	60.5	0.63	6.0	2.4	2.4	65
YSM6324	0.18		0.64	1400	64.5	0.66	6.0	2.4	2.4	65
YSM7114	0.25		0.83	1400	67.5	0.68	6.0	2.4	2.4	65
YSM7124	0.37		0.83	1400	70	0.72	6.0	2.4	2.4	70
YSM8014	0.55		1.51	1400	75	0.74	6.0	2.4	2.4	70
YSM8024	0.75		1.97	1400	76	0.76	6.0	2.4	2.4	70
YSM90S-4	1.1		2.75	1400	78.5	0.79	6.5	2.4	2.4	73
YSM90L-4	1.5		3.61	1400	79.5	0.80	6.5	2.4	2.4	78
YSM100L1-4	2.2		5.16	1400	81.5	0.82	6.5	2.3	2.4	78
YSM100L2-4	3		6.86	1400	83	0.82	6.5	2.3	2.3	83
